    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

    Ask Lasest Price
    Brand Name : HR
    Model Number : VMC1580
    Certification : CE
    Price : 50000 USD /SET
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 100SETS /MONTH
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking

    Product Description
    VMC1580 3/4/5 axis vertical machine center cnc milling machine with price is composed of mechanical equipment and numerical control system. VMC1580 vertical turret metal cnc tool large milling machine is an automated machine that is suitable for efficient machining of complex parts.
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    ◆The main large parts of the machine tool: the base, saddle, worktable, column, and headstock are all made of high-quality resin sand molding, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and sufficient reinforcement plates are arranged to ensure The whole machine has sufficient strength, rigidity and high stability
    ◆The XY axis adopts roller linear guide, which has strong rigidity and good dynamic accuracy; ◆The three-axis transmission adopts Taiwan-made ground double-nut ball screw, which is compact in structure, stable in movement and high in precision. The screw support adopts the original imported screw support bearing made in Japan, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation. Form a stable and high-rigidity mechanical transmission system;
    ◆The base adopts a casting large water tray structure, which has good waterproof performance;
    ◆The high-rigidity Taiwan-made BT50 spindle is lubricated with grease, which can make the spindle bearings get constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free;
    Product Paramenters
    Model
    Unit
    VMC1580
    working tale size
    mm
    800x1700
    X/Y/Z travel
    mm
    1500/800/700
    Distance between spindle end and table
    mm
    170/840
    Distance between spindle center and column guide way
    mm
    810
    Maximum weight of working table
    kg
    1500
    Table-T-slot
    mm
    5-22-135
    X/Y/Z axis rapid feed
    mm/min
    15/15/12
    Three axis working rapid speed
    mm/min
    6000
    Positioning accuracy
    mm
    ±0.001
    Repeat positioning accuracy
    mm
    ±0.0075
    Spindle speed
    rpm
    6000
    Spindle taper
    mm
    BT50
    Torque force of spindle motor
    nm/kw
    15/18.5
    Magazine tool capacity
    pcs
    24(dis type)
    machine size
    mm
    4300*3200*3100
    machine weight
    kg
    13000
    Detailed Images
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    • Auto tool changer

    Optional configuration: 3 axis ,
    4 axis ,5 axis :

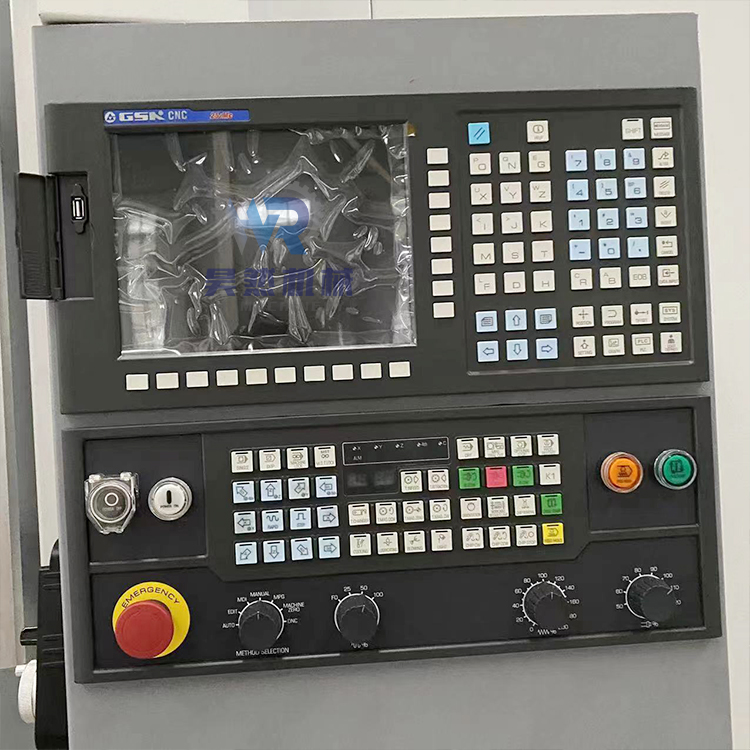

    GSK cnc system
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    VMC1580 CNC Vertical Machining Centers 5-axis 4-axis 3-axis Milling Machines Metalworking
    • NSK ball screw and bearing

    Electric cabinet

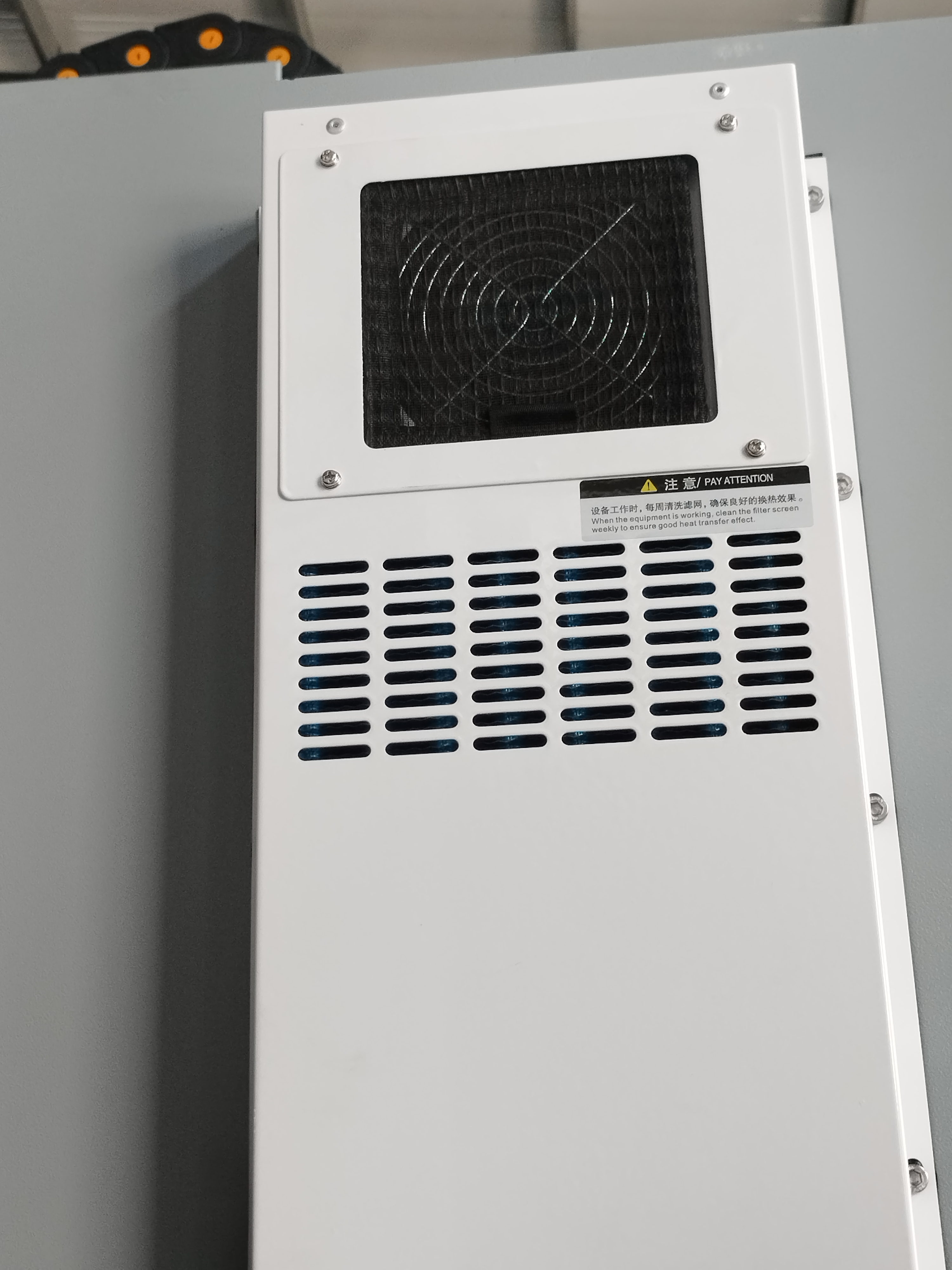

    Heat extractor
