    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

    Ask Lasest Price
    Brand Name : HR
    Model Number : TCK56-1000
    Certification : CE
    Price : 24800USD
    Payment Terms : T/T, D/P
    Supply Ability : 100 sets/month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

    Product Description
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
    • Introduction
    TCK56 series multi-function CNC lathe, the bed adopts box structure and strong cast iron (HT-300), one-piece molding casting technology, and is completed by machining center clamping. Therefore, it has the characteristics of strong overall rigidity, good accuracy retention of machine tools, and high reliability in use.
    Specification
    Unit
    TCK56
    Work Capability
    Max swing over bed Dia.
    mm
    Φ640
    Max swing over the cross slide Dia.
    mm
    Φ280
    Max cutting length
    mm
    540
    Max turning diameter
    mm
    Φ540
    Spindle
    Hydraulic chuck size
    mm
    10''
    Spindle nose
    /
    A2-6
    Spindle taper/diameter
    mm
    Φ 66
    Spindle speed
    r/min
    20-3500
    Main motor power
    kW
    11
    Tail stock
    Tail stock sleeve dia./travel
    mm
    480
    Sleeve taper
    MT No.
    MT-5
    Body
    Bed angle
    DEG
    45 °
    Travel range for X/Z
    mm
    280/700
    Fast feeding speed X/Z
    m/min
    24/24
    Servo motor torque X/Z
    Nm
    15/15
    Servo motor power
    kw
    2./2.3
    Turret
    Nos.
    /
    12
    Tools size
    mm
    25×25/Φ32
    Y axis travel range
    mm
    +_50
    Dimension size
    mm
    3400X2060x2100
    Weight
    kg
    4200
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
    Details Images
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

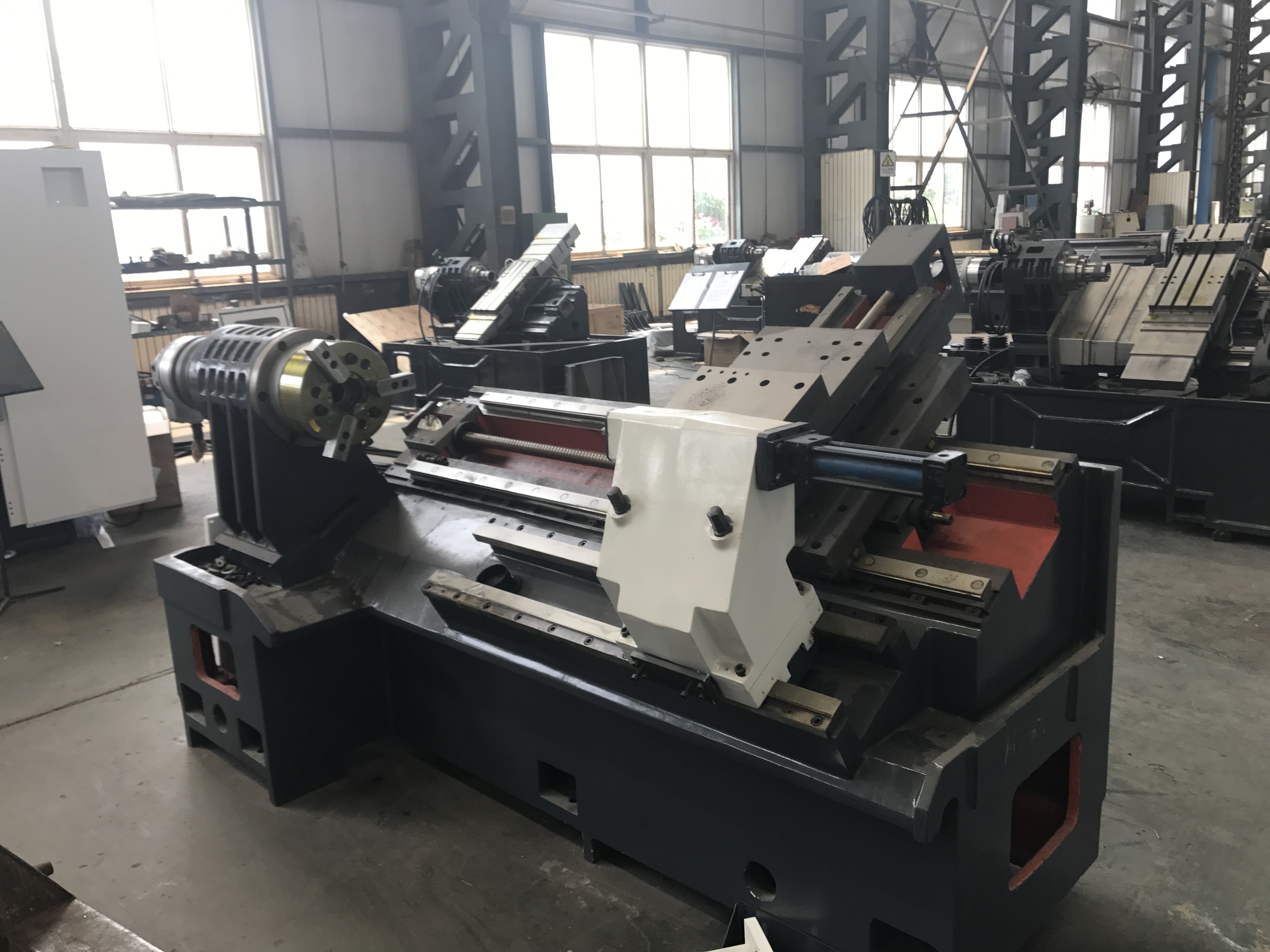

      • 45 Degree Machine structure

    1. Special structure more stronger
    2. Heavy loading capacity
    3. Easy metal chips falling down

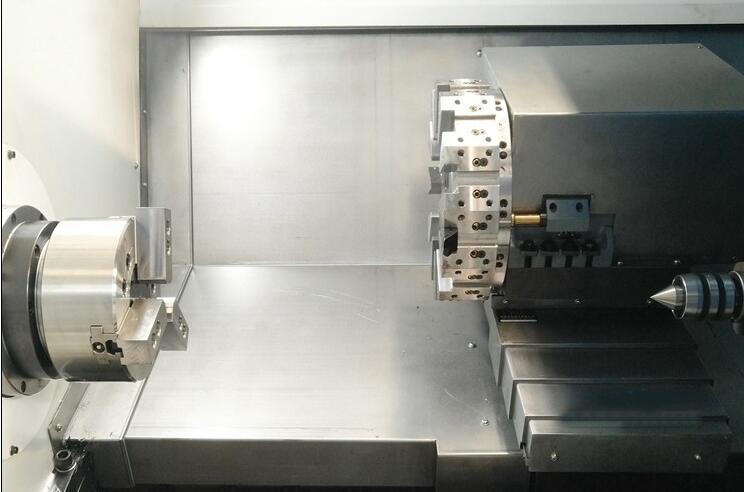

    • HYDRAULIC CHUCK

    Standard with hollowhydraulic chuck,Chinesebrand or Taiwan brand
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
      • Hydraulic tailstock

    1. Standard with hydraulic tailstock
    2. Can choose Programmable tailstock driven by servo motor
    • Linear rails

    X Z axis Adopts Taiwan Linear rails

    High speed , High accuracy
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision

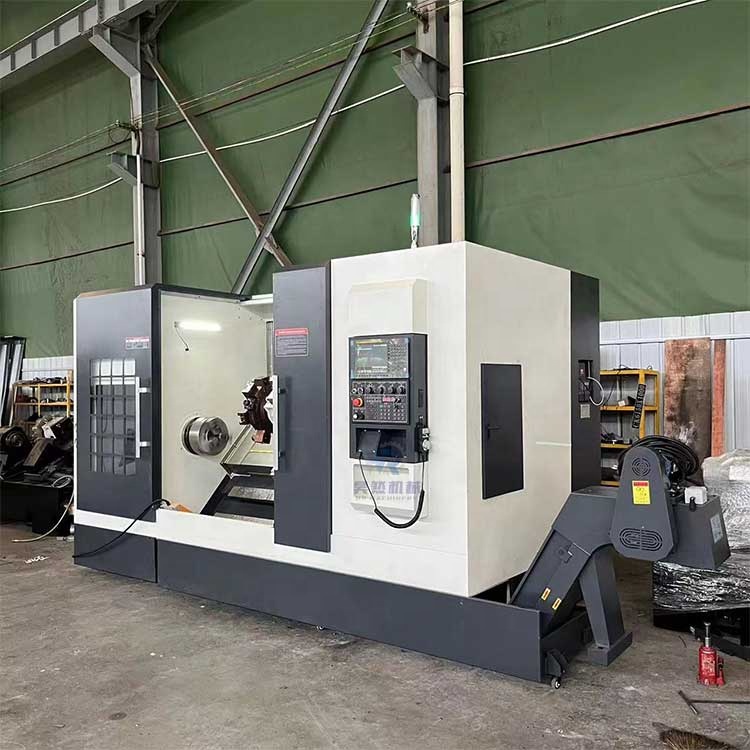

      • Automatic chip conveyor

    Easy metal chips remover
    Save time and energy
    Can choose with extra cost
    Horizontal Tck56-1000 Slant Bed Cnc Lathe Machine High Precision
