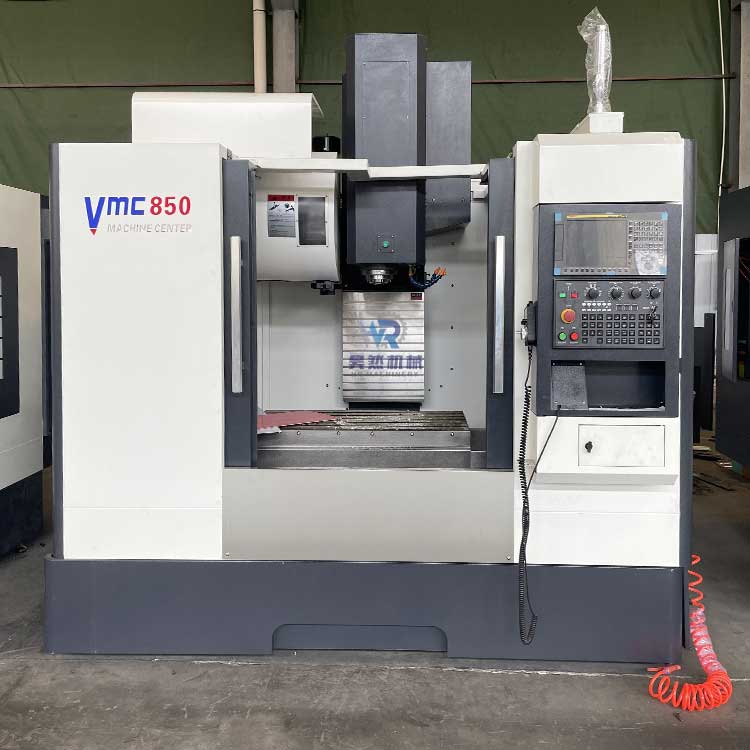

    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc850
    Certification : ceiso
    Price : usd 19000-40000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V

    VMC850 cnc milling machines 4axis cnc vertical milling machine
    Model
    Vmc640
    VMC650
    VMC840
    VMC850
    VMC855
    Table size (mm)
    800*300
    1000*400
    1000*400
    1000*500
    1000*550
    Max. allowable load (Kg)
    400
    400
    300
    500
    500
    X-axis stroke (mm)
    600
    650
    800
    800
    800
    Y-axis travel (mm)
    400
    400
    400
    500
    550
    Z-axis travel (mm)
    450
    550
    550
    500
    550
    T-slot
    3-18-120
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    spindle center to Z-axis guide surface (mm)
    460
    485
    445
    552
    590
    spindle end face to work table (mm)
    120-670 mm
    100-650
    100-650
    110-610
    120-670
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    24/24/18mm
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3000
    3800
    3200
    5300
    5500
    Model
    VMC966
    VMC1050
    VMC1160
    VMC1165
    Table size (mm)
    1100*550
    1200*420
    1200*600
    1200*600
    Max. allowable load (Kg)
    600
    500
    800
    800
    X-axis stroke (mm)
    900
    1000
    1100
    1100
    Y-axis travel (mm)
    600
    500
    600
    650
    Z-axis travel (mm)
    600
    550
    600
    650
    T-slot
    5-18-100
    5-18-100
    5-18*100
    5-18-100
    spindle center to Z-axis guide surface (mm)
    663
    575
    650
    710
    spindle end face to work table (mm)
    100-700
    100-650
    120-720
    120-720
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    18/18/18
    36/36/24
    36/36/36
    Machine Weight (Kg)
    5600
    5500
    6500
    6800

    Model
    VMC1265
    VMC1270
    VMC1370
    VMC1580
    Vmc1690
    Table size (mm)
    1200*600
    1200*700
    1400*700
    1700*800
    1600*800
    Max. allowable load (Kg)
    800
    800
    800
    1500
    1500
    X-axis stroke (mm)
    1200
    1200
    1300
    1500
    1600
    Y-axis travel (mm)
    650
    700
    700
    800
    900
    Z-axis travel (mm)
    650
    700
    750
    700
    700
    T-slot
    5-18-100
    5-18-130
    5-18-130
    5-22-135
    7-22-110
    spindle center to Z-axis guide surface (mm)
    710
    710
    713
    855
    936
    spindle end face to work table (mm)
    120-770
    120-770
    120-870
    160-860
    150-850
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    BT50-190
    Spindle speed (r/min)
    8000
    8000
    8000
    6000
    10000
    X/Y/Z rapid movement (m/min)
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    15/15/12
    Machine Weight (Kg)
    7000
    7000
    8000
    12000
    12000
    CNC milling machineThe guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. CNC milling machine CNC vertical machining cente suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.CNC vertical machining center
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    Detailed description
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    The X, y and Z guide rails have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. They cooperate with automatic forced lubrication to improve the accuracy and service life of the machine tool; Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
    Application
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
    Packing & Delivery
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
    Certifications
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    Company Profile
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
    Customer visiting
    VMC850 4 Axis Cnc Vertical Milling Machine 220V/380V
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant futur
    FAQ
    1.What CNC system do you use? A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice. 2. Payment Terms A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss. 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4.How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 5.Where is our factory located? How can I visit there? A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us. 6.What's the MOQ? A: 1 set . 7.How long is the machine warranty? A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
