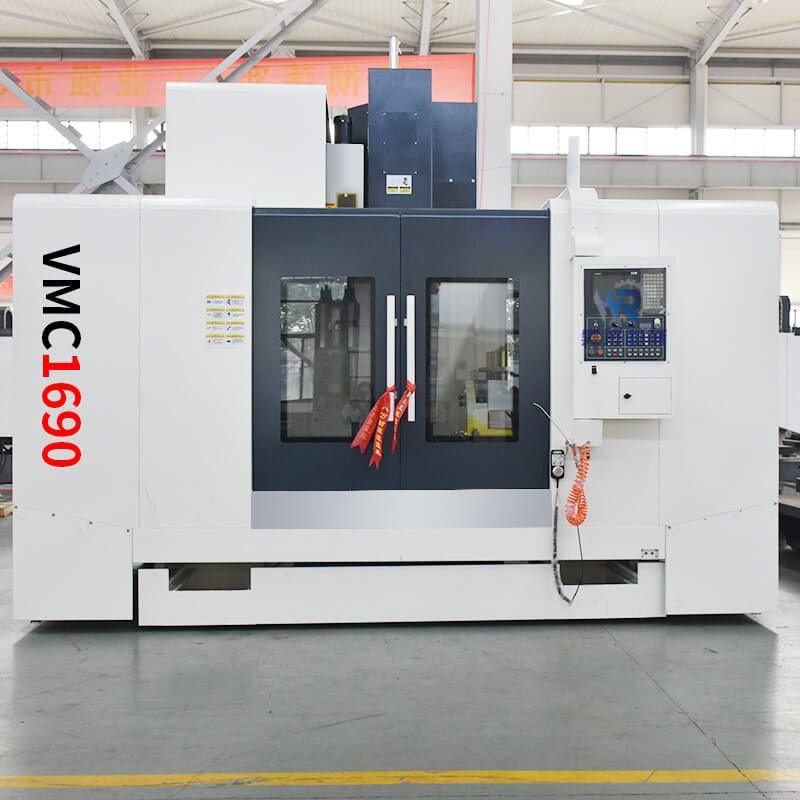

    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc1690
    Certification : ceiso
    Price : usd 19000-40000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc

    Model
    VMC650
    VMC840
    VMC850
    VMC855
    Table size (mm)
    1000*400
    1000*400
    1000*500
    1000*550
    Max. allowable load (Kg)
    400
    300
    500
    500
    X-axis stroke (mm)
    650
    800
    800
    800
    Y-axis travel (mm)
    400
    400
    500
    550
    Z-axis travel (mm)
    550
    550
    500
    550
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    Model
    VMC966
    VMC1050
    VMC1160
    VMC1165
    Table size (mm)
    1100*550
    1200*420
    1200*600
    1200*600
    Max. allowable load (Kg)
    600
    500
    800
    800
    X-axis stroke (mm)
    900
    1000
    1100
    1100
    Y-axis travel (mm)
    600
    500
    600
    650
    Z-axis travel (mm)
    600
    550
    600
    650
    T-slot
    5-18-100
    5-18-100
    5-18*100
    5-18-100
    spindle center to Z-axis guide surface (mm)
    663
    575
    650
    710
    spindle end face to work table (mm)
    100-700
    100-650
    120-720
    120-720
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    18/18/18
    36/36/24
    36/36/36
    Machine Weight (Kg)
    5600
    5500
    6500
    6800
    Model
    VMC1265
    VMC1270
    VMC1370
    VMC1580
    Vmc1690
    Table size (mm)
    1200*600
    1200*700
    1400*700
    1700*800
    1600*800
    Max. allowable load (Kg)
    800
    1000
    800
    1500
    1500
    X-axis stroke (mm)
    1200
    1200
    1300
    1500
    1600
    Y-axis travel (mm)
    650
    700
    700
    800
    900
    Z-axis travel (mm)
    650
    700
    750
    700
    700
    T-slot
    5-18-100
    5-18-115
    5-18-130
    5-22-135
    7-22-110
    spindle center to Z-axis guide surface (mm)
    710
    767
    713
    855
    936
    spindle end face to work table (mm)
    120-770
    130-830
    120-870
    160-860
    150-850
    Spindle taper hole
    BT40-150
    BT50
    BT40-150
    BT50-155
    BT50-190
    Spindle speed (r/min)
    8000
    8000
    8000
    6000
    10000
    X/Y/Z rapid movement (m/min)
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    15/15/12
    Machine Weight (Kg)
    7000
    9000
    8000
    12000
    12000
    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc
    cnc machine Center is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide).
    Product Details
    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc
    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc

    1 .Taiwan HIWIN high precison guideway 2 .Taiwan-made spindle Unit,8000-12000rpm available 3.Reliable Control System: vertical machining center is suitable for producing metal product and parts in all shapes.
    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc
    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
    Packaging&Shipping
    Large KND Vmc1690 Cnc Vertical Machine Center With 24 Arm Type Atc
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
