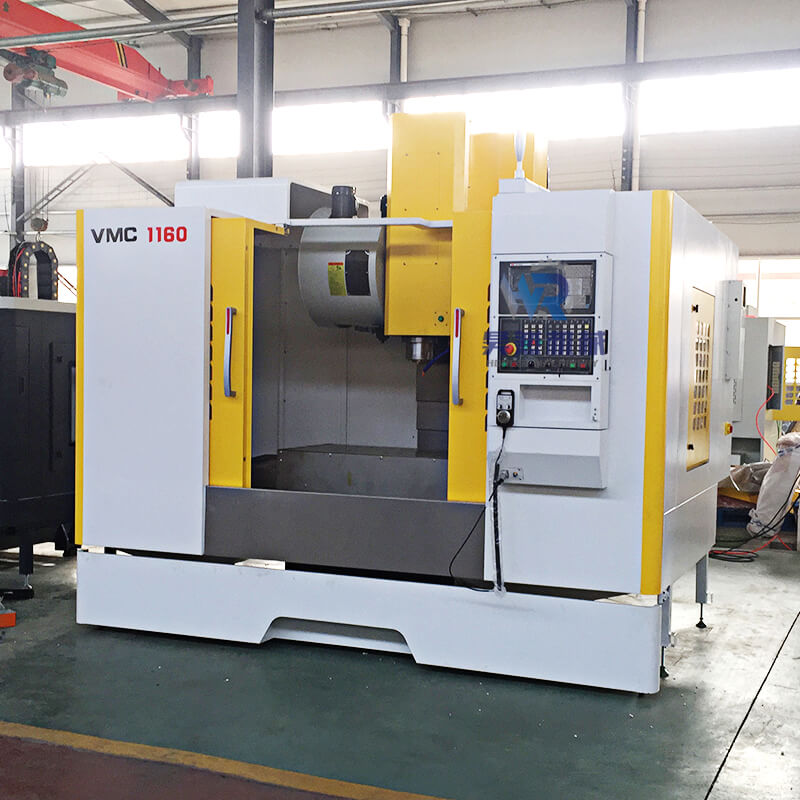

    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc1160
    Certification : ceiso
    Price : usd 19000-40000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis

    Item
    VMC840
    VMC850
    vmc855
    VMC1160
    VMC1270
    VMC1370
    VMC1580
    Size of worktable(length×width)mm
    1000*400
    1000*500
    1000*550
    1200*600
    1400*700
    1460*700
    1700*800
    T slot (mm)
    5-18*100
    5-18*100
    5-18*90
    5-18*100mm
    5-18*115
    5-22*140
    5-22*150
    Max loading weight on worktable
    500KG
    600kg
    600kg
    1000kg
    1000kg
    1400
    1500
    X-Axis travel(mm)
    800
    800
    800
    1000
    1200
    1300
    1500
    Y-Axis travel(mm)
    400
    500
    550
    600
    700
    700
    800
    Z-Axis travel(mm)
    500
    500
    500
    600
    700
    700
    700
    Distance between spindle nose and table
    105-550
    105-605mm
    120-620mm
    100-700mm
    130-830mm
    160-860mm
    170-840
    Distance between spindle
    center and column(mm)
    450
    550
    540
    667
    767
    775
    810
    Spindle taper
    BT40
    BT40
    BT40
    BT40
    BT50
    Max. spindle speed( rpm)
    8000/10000/12000
    Spindle motor power(Kw)
    5.5KW
    7.5/11kw
    7.5/11kw
    11/15kw
    11/15kw
    15/18.5kw
    18.5kw
    Rapid feeding speed: X,Y,Z axis m/min
    16/16/16 (24/24//24 liner guidway)
    Fast cutting speed m /min
    10m/min
    Positional accuracy
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.0075 mm
    ±0.01 mm
    Repeat positional accuracy
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.005 mm
    ±0.005mm
    Auto Tool changer type
    16 tools head type tool changer(optional 24 arm type auto tool changer)
    Max. tool length
    300mm
    Max. Tool diameter
    Φ80(adjacent tool)/φ150(not adjacent tool)
    Max.tool weight
    8kg
    Tool changing time(tool-to-tool)
    7sec
    Air pressure
    0.6 Mpa
    Machine weight
    4200KG
    5500KG
    5800
    7500KG
    9000KG
    10000KG
    13000KG
    Overall sizse(mm)
    2600*2300*2300
    2600*2300*2300
    2800*2400*2400
    3340*2800*2700
    3800*3000*2650
    3870*3165*2920
    4300*3200*3100
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    Vmc1160 CNC milling machine It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.Vmc1160 CNC milling machine
    Product Details
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT50 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock;
    sample
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    it is widely used to produce the auto spare
    parts, medical treatment instrument and any kind of injection
    mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
    Packaging&Shipping
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
    Certifications
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    customer visiting
    High Efficiency Cnc Vertical Machine Center Vmc1160 4 Axis
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
