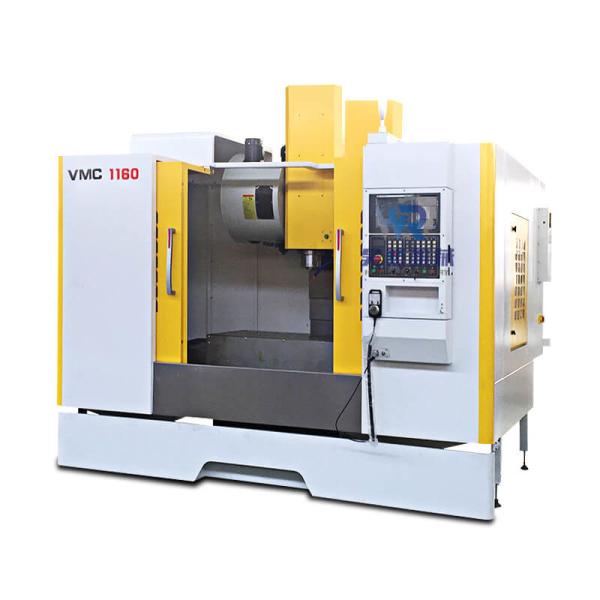

8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional

Shandong HR Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional from wholesalers

    Buy cheap 8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional from wholesalers
    • Buy cheap 8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional from wholesalers

    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc1160
    Certification : ceiso
    Price : usd 19000-40000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional

    Item
    VMC840
    VMC850
    vmc855
    VMC1160
    VMC1270
    VMC1370
    VMC1580
    Size of worktable(length×width)mm
    1000*400
    1000*500
    1000*550
    1200*600
    1400*700
    1460*700
    1700*800
    T slot (mm)
    5-18*100
    5-18*100
    5-18*90
    5-18*100mm
    5-18*115
    5-22*140
    5-22*150
    Max loading weight on worktable
    500KG
    600kg
    600kg
    1000kg
    1000kg
    1400
    1500
    X-Axis travel(mm)
    800
    800
    800
    1000
    1200
    1300
    1500
    Y-Axis travel(mm)
    400
    500
    550
    600
    700
    700
    800
    Z-Axis travel(mm)
    500
    500
    500
    600
    700
    700
    700
    Distance between spindle nose and table
    105-550
    105-605mm
    120-620mm
    100-700mm
    130-830mm
    160-860mm
    170-840
    Distance between spindle
    center and column(mm)
    450
    550
    540
    667
    767
    775
    810
    Spindle taper
    BT40
    BT40
    BT40
    BT40
    BT50
    Max. spindle speed( rpm)
    8000/10000/12000
    Spindle motor power(Kw)
    5.5KW
    7.5/11kw
    7.5/11kw
    11/15kw
    11/15kw
    15/18.5kw
    18.5kw
    Rapid feeding speed: X,Y,Z axis m/min
    16/16/16 (24/24//24 liner guidway)
    Fast cutting speed m /min
    10m/min
    Positional accuracy
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.005 mm
    ±0.0075 mm
    ±0.01 mm
    Repeat positional accuracy
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.003 mm
    ±0.005 mm
    ±0.005mm
    Auto Tool changer type
    16 tools head type tool changer(optional 24 arm type auto tool changer)
    Max. tool length
    300mm
    Max. Tool diameter
    Φ80(adjacent tool)/φ150(not adjacent tool)
    Max.tool weight
    8kg
    Tool changing time(tool-to-tool)
    7sec
    Air pressure
    0.6 Mpa
    Machine weight
    4200KG
    5500KG
    5800
    7500KG
    9000KG
    10000KG
    13000KG
    Overall sizse(mm)
    2600*2300*2300
    2600*2300*2300
    2800*2400*2400
    3340*2800*2700
    3800*3000*2650
    3870*3165*2920
    4300*3200*3100
    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional
    Vmc1160 CNC milling machine is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt.
    Product Details
    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional
    .HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts;
    sample
    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional
    it is widely used to produce the auto spare
    parts, medical treatment instrument and any kind of injection
    mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
    Packaging&Shipping
    8000rpm Vmc1160 High Speed Vertical Machining Center Multi Functional
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
