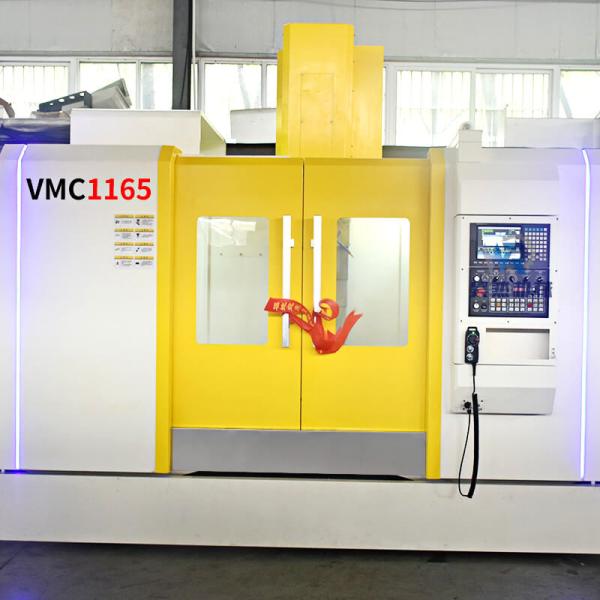

    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc 1165
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 200 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center

    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center

    Product Paramenters
    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    Model
    VMC1050
    VMC1160
    VMC1165
    VMC1265 I
    VMC1370 I
    VMC1580
    Table size (mm)
    1200x420
    1200x600
    1200x600
    1200x600
    1400x700
    1700X800
    Max. allowable load (Kg)
    500
    800
    800
    800
    800
    1500
    X-axis stroke (mm)
    1000
    1100
    1100
    1200
    1300
    1500
    Y-axis travel (mm)
    500
    600
    650
    650
    700
    800
    Z-axis travel (mm)
    550
    600
    650
    650
    750
    700
    T-slot
    5-18-100
    5-18x100
    5-18-100
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    )575
    650
    710
    710
    713
    855
    spindle end face to work table (mm)
    100-650
    120-720
    120-720
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    18/18/18
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    5500
    6500
    6800
    7000
    8000
    12000
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center

    Product Description
    Vertical machining center refers to a machining center with the axis of the main shaft and the worktable set perpendicular to it. It is mainly suitable for processing complex parts such as plates, discs, molds and small shells. The vertical machining center can complete the processes of milling, boring, drilling, tapping and thread cutting. The vertical machining center is at least three-axis and two-linkage, and generally can realize three-axis and three-linkage. Some can carry out five-axis, six-axis control. The height of the vertical machining center column is limited, and the processing range of the box type workpiece should be reduced, which is the disadvantage of the vertical machining center. However, the workpiece clamping and positioning of the vertical machining center are convenient; the movement trajectory of the cutting tool is easy to observe, the debugging program is convenient to check and measure, and the problem can be found in time, and the shutdown processing or modification can be carried out; the cooling condition is easy to establish, and the cutting fluid can directly reach the cutting tool and the machined surface; The three coordinate axes are consistent with the Cartesian coordinate system, the intuitive feeling is consistent with the pattern viewing angle, and the chips are easy to removeand drop, avoid scratching the machined surface.
    Application:
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
    Product Advantages

    The advantages of Machining center

    1.The fuselage and main components are high strength cast iron, microstructure stabilit, ensure the stability of machine tool for long-term use. 2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting 3.The pre tension precision ball screw drive 4.The high speed, high precision, high rigidity spindle unit 5.The design of oil-water separation 6.The intermittent automatic lubrication 7 Automatic scraping knife system
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    Machine detection
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    Application Example
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
    ,tapping,boring ,etc.
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    Packaging&Shipping
    ISO 4 Axis VMC Machine Vertical And Horizontal Machining Center
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
    Company information
    Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
