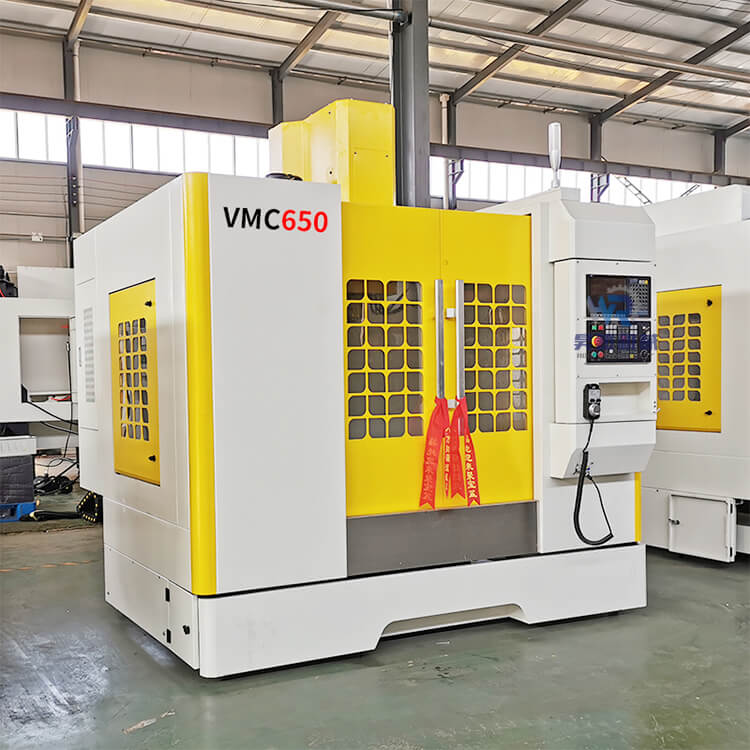

    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc650
    Certification : ceiso
    Price : 19000-40000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis

    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis

    Model
    VMC650
    VMC840
    VMC850
    VMC855
    Table size (mm)
    1000*400
    1000*400
    1000*500
    1000*550
    Max. allowable load (Kg)
    400
    300
    500
    500
    X-axis stroke (mm)
    650
    800
    800
    800
    Y-axis travel (mm)
    400
    400
    500
    550
    Z-axis travel (mm)
    550
    550
    500
    550
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    Model
    VMC966
    VMC1050
    VMC1160
    VMC1165
    Table size (mm)
    1100*550
    1200*420
    1200*600
    1200*600
    Max. allowable load (Kg)
    600
    500
    800
    800
    X-axis stroke (mm)
    900
    1000
    1100
    1100
    Y-axis travel (mm)
    600
    500
    600
    650
    Z-axis travel (mm)
    600
    550
    600
    650
    T-slot
    5-18-100
    5-18-100
    5-18*100
    5-18-100
    spindle center to Z-axis guide surface (mm)
    663
    575
    650
    710
    spindle end face to work table (mm)
    100-700
    100-650
    120-720
    120-720
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    18/18/18
    36/36/24
    36/36/36
    Machine Weight (Kg)
    5600
    5500
    6500
    6800
    Model
    VMC1270
    VMC1370
    VMC1580
    Table size (mm)
    1200*700
    1400*700
    1700*800
    Max. allowable load (Kg)
    800
    800
    1500
    X-axis stroke (mm)
    1200
    1300
    1500
    Y-axis travel (mm)
    700
    700
    800
    Z-axis travel (mm)
    700
    750
    700
    T-slot
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    710
    713
    855
    spindle end face to work table (mm)
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    7000
    8000
    12000
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    .Vmc650 CNC milling machineIt is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. Vmc650 CNC milling machine
    Product Details
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis

    High degree of production automation can reduce the labor intensity of operators. It is conducive to the automation of production management;
    With high production efficiency, CNC milling machines generally do not need to use special process equipment such as special fixtures.
    sample
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
    Packaging&Shipping
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
    Certifications
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    customer visiting
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
    Company information
    VMC650 CNC VMC Vertical Machining Center 3 Axis 4 Axis 5 Axis
    Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
