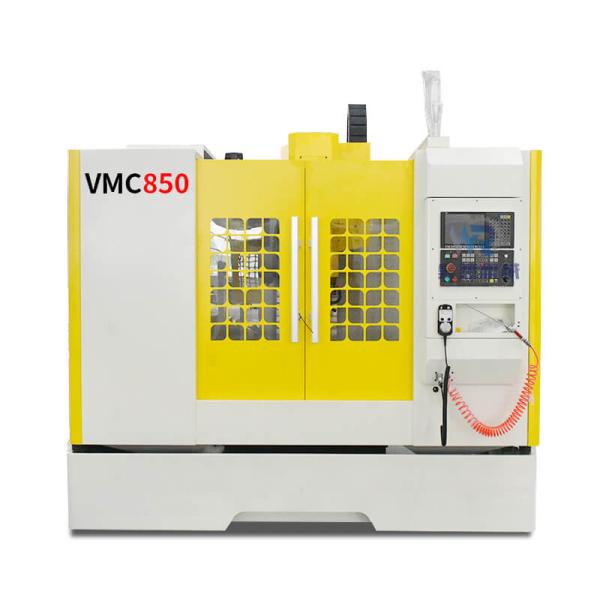

    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc 850
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 200 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine

    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine

    Product Paramenters
    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    Model
    VMC1050
    VMC1160
    VMC1165
    VMC1265 I
    VMC1370 I
    VMC1580
    Table size (mm)
    1200x420
    1200x600
    1200x600
    1200x600
    1400x700
    1700X800
    Max. allowable load (Kg)
    500
    800
    800
    800
    800
    1500
    X-axis stroke (mm)
    1000
    1100
    1100
    1200
    1300
    1500
    Y-axis travel (mm)
    500
    600
    650
    650
    700
    800
    Z-axis travel (mm)
    550
    600
    650
    650
    750
    700
    T-slot
    5-18-100
    5-18x100
    5-18-100
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    )575
    650
    710
    710
    713
    855
    spindle end face to work table (mm)
    100-650
    120-720
    120-720
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    18/18/18
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    5500
    6500
    6800
    7000
    8000
    12000
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine

    Product Description
    A true 5-axis machine can allow for continuous 5-axis machining simultaneously. This increases both speed and accuracy when machining the part.
    CNC Vertical Mills generally have a single spindle, automatic tool changer, work table and CNC Control.
    The spindle on a CNC Machining Center can have a wide range of speeds depending on what material is being cut and the depth of cut that is required. Typical spindle speed ranges from 0 to 10,000 RPM. Higher speeds are used for lighter materials including graphite and aluminum among others. Higher speeds can reach 12,000 RPM up to 50,000 RPM and higher.
    The Spindle is loaded with tool holders and cutters to achieve the proper material removal. There are many different styles of tool holders including BT and CAT – which have a conical shape as well as HSK, which uses flanges instead of a taper to lock the holder in place. BT and CAT Holders can come in various sizes including 30, 40 and 50 taper depending on the size of tool the cutter requires. HSK (Hollow taper ShanK) comes in a variety of types – A through F – and sizes from HSK-32 up to HSK-160. HSK is
    considered a better tool holder for high speed machining as there is more surface contact between the spindle and the holder, reducing vibration and keeping the tool from pulling back into the receiver when cutting at high speeds.


    Application:
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
    Product Advantages

    The advantages of Machining center 850 machine:

    1. The main parts of machine tool 850 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
    2. Machining center 850 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
    3. The machining center 850 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
    4. Machining center 850 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine
    tool.
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
    Machine detection
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
    Application Example
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
    Packaging&Shipping
    VMC850 CNC Vertical Machine Center 5 Axis VMC Machine
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
