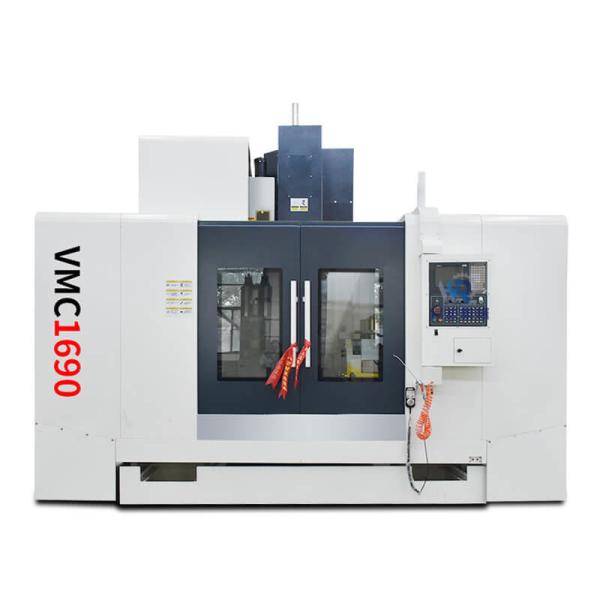

5 Axis High Precision VMC CNC Milling Machine Center Vmc1690

Shandong HR Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5 Axis High Precision VMC CNC Milling Machine Center Vmc1690 from wholesalers

    Buy cheap 5 Axis High Precision VMC CNC Milling Machine Center Vmc1690 from wholesalers
    • Buy cheap 5 Axis High Precision VMC CNC Milling Machine Center Vmc1690 from wholesalers
    • Buy cheap 5 Axis High Precision VMC CNC Milling Machine Center Vmc1690 from wholesalers
    • Buy cheap 5 Axis High Precision VMC CNC Milling Machine Center Vmc1690 from wholesalers

    5 Axis High Precision VMC CNC Milling Machine Center Vmc1690

    Ask Lasest Price
    Brand Name : HR
    Model Number : VMC1690
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 200 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    5 Axis High Precision VMC CNC Milling Machine Center Vmc1690

    Vertical Machining has been around in its most basic form for more than 150 years. Yet, it's still one of the newest forms of machining technology (turning/lathes is the oldest). The process of “milling” entails a rotating cutter, or drilling bit, and a movable work table, which the workpiece is affixed to. The cutter is attached to and rotated in a housing called the "spindle." Through the sharpness of the tool and force of the table pushing the material into the cutter, the material yields and is cut or shaved away as desired. The axis of force can be up/down (referred to as the Z-Axis) left/right (referred to as the X-Axis), or front to back (referred to as the Y-Axis).


    Product Description


    5 Axis High Precision VMC CNC Milling Machine Center Vmc16905 Axis High Precision VMC CNC Milling Machine Center Vmc1690


    Product Paramenters

    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    VMC1050
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    1200x420
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    500
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    1000
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    500
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    550
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    )575
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    100-650
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    18/18/18
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    5500
    Model
    VMC1160
    VMC1165
    VMC1265
    VMC1270
    VMC1370
    VMC1580
    Vmc1690
    Table size (mm)
    1200x600
    1200x600
    1200x600
    1300×650
    1400x700
    1700X800
    1600*800
    Max. allowable load (Kg)
    800
    800
    800
    1000
    1000
    1500
    1500
    X-axis stroke (mm)
    1100
    1100
    1200
    1200
    1300
    1500
    1600
    Y-axis travel (mm)
    600
    650
    650
    700
    700
    800
    900
    Z-axis travel (mm)
    600
    650
    650
    750
    750
    700
    700
    T-slot
    5-18x100
    5-18-100
    5-18-100
    5-18-120
    5-18-130
    5-22-135
    7-22-110
    spindle center to Z-axis guide surface (mm)
    650
    710
    710
    785
    713
    855
    936
    spindle end face to work table (mm)
    120-720
    120-720
    120-770
    120-850
    120-870
    160-860
    150-850
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    BT50-190
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    10000
    X/Y/Z rapid movement (m/min)
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/24
    24/24/18
    15/15/12
    Machine Weight (Kg)
    6500
    6800
    7000
    7500
    8000
    12000
    12000

    Product Advantages


    The advantages of Machining center

    1. The main parts of machine tool in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metal structure. 2. Machining center machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metal graphic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance. 3. The machining center machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid. 4. Machining center high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool
    Machine detection
    Application Example
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
    requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
    ,tapping,boring ,etc.
    Packaging&Shipping

    1. Outside package: Standard marine export plywood case.

    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
