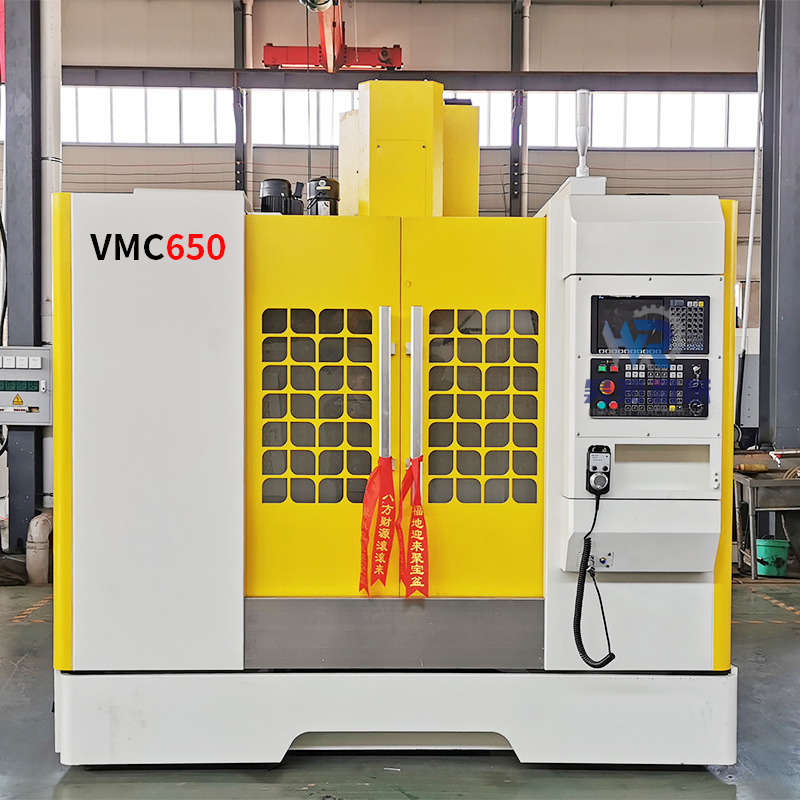

    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc 650
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 60 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal

    Product Paramenters
    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    Model
    VMC1050
    VMC1160
    VMC1165
    VMC1265
    VMC1370 I
    VMC1580
    Table size (mm)
    1200x420
    1200x600
    1200x600
    1200x600
    1400x700
    1700X800
    Max. allowable load (Kg)
    500
    800
    800
    800
    800
    1500
    X-axis stroke (mm)
    1000
    1100
    1100
    1200
    1300
    1500
    Y-axis travel (mm)
    500
    600
    650
    650
    700
    800
    Z-axis travel (mm)
    550
    600
    650
    650
    750
    700
    T-slot
    5-18-100
    5-18x100
    5-18-100
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    )575
    650
    710
    710
    713
    855
    spindle end face to work table (mm)
    100-650
    120-720
    120-720
    120-720
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    18/18/18
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    5500
    6500
    6800
    6800
    8000
    12000

    Specification unit
    VMC650
    Table Size 1000×400 mm
    Max. Table Load 400 kg
    T-slot No. and size 3-18-120 mm

    processing

    Scope

    Table Travel (X) 650 mm
    Table Travel (Y) 400 mm
    Table Travel (Z) 550 mm
    Spindle end face to Work surface distance Max. 650 mm
    Min. 100 mm
    Distance from Spindle center to Z Axes rail surface 485 mm
    Spindle Spindle Taper (7:24) BT40-120
    Range of Spindle Speed 8000 r/min
    Spindle Motor Power 5.5 kW
    Move Fast-moving X Axes 32 m/min
    Y Axes 32
    Z Axes 32
    Moving speed 1-10000 mm/min
    Tool Magazine Tool Magazine style disc
    Tool Magazine Capacity 16
    Min. Time of Tool Change 2.5 s
    Positioning Accuracy Accuracy testing standard JISB6336-4:2000/ GB/T18400.4-2010
    X/Y/Z Axes 0.008 mm
    X/Y/Z Axe Repeatability 0.005 mm
    Dimension(L*W*H) 2400×2100×2300 mm
    Weight 3800 kg

    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal

    Product Advantages

    The advantages of Machining center vmc 650

    1. The main parts of machine tool 650 in machining center are optimized by finite element analysis. The main cast iron is made of high strength cast iron with stable metallostructure.
    2. Machining center 650 machine body base, slide block, workbench, column, spindle box and other main foundation parts adopt high rigid cast iron structure, stable metallographic structure, distributed in the internal network structure reinforcement,to ensure the high rigidity and bending resistance and shock absorption performance of the foundation parts; The basic parts are made of resin sand and treated by sandblasting, tempering and vibration effectively to ensure the stability of the machine's accuracy in long-term use and provide a guarantee for the stability of the machine's performance.
    3. The machining center 650 machine has a-shaped straddle structure, which is optimized for THREE-DIMENSIONAL diameter reduction, reducing the vibration of the machine tool during strong cutting and making the machine tool more rigid.
    4. Machining center 650 high speed and high rigidity spindle unit combined with servo spindle motor; X/Y/Z adopts high torque servo motor. X/Y/Z adopts Taiwan high-precision high-strength ball screw with Japanese NSK bearing and high precision imported locking. X/Y/Z three-way guide rail adopts hard track design, fixed surface adopts ultra-high frequency quenching process after precision grinding; The sliding surface is made of high strength wear-resisting material with plastic tape. Y direction guide rail for four track design (including auxiliary guide rail) greatly increase the rigidity and strength of the machine tool.
    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal
    Application Example
    VMC650 cnc milling machine vertical machining center The vertical machining center is mainly used to process parts with high precision, many processes and complex shapes such as plates, disc parts, shell parts, molds, etc. It can continuously complete milling, drilling, expanding, reaming, boring, Tapping, two-dimensional and three-dimensional curved surfaces, and precise machining of inclined planes, the processing is programmed, and the production cycle is shortened, so that users can obtain good economic benefits.
    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal
    Packaging&Shipping
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal
    Company information
    Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
    Hot sales BT40 vmc650 cnc 5 axis vertical milling machine high speed cnc vertical machining center with metal
    FAQ

    1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.

    2.What CNC system do you use?
    FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

    3. Payment Terms
    30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.

    4. How can I choose the most suitable machines?
    Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
