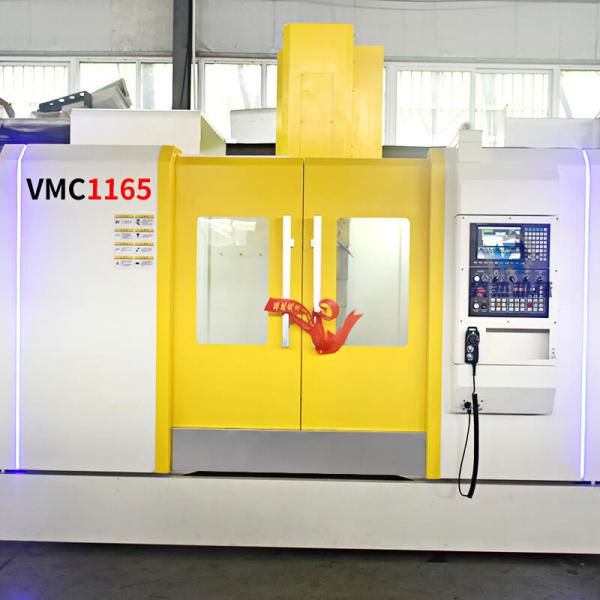

    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc 1165
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 200 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM

    VMC Vertical Machining Center VMC1165 Main Characteristics:

    1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
    2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
    3. The joint face of components are manually polished well, which guarantees the effective contacting area.
    Product Paramenters
    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    Model
    VMC1050
    VMC1160
    VMC1165
    VMC1265 I
    VMC1370 I
    VMC1580
    Table size (mm)
    1200x420
    1200x600
    1200x600
    1200x600
    1400x700
    1700X800
    Max. allowable load (Kg)
    500
    800
    800
    800
    800
    1500
    X-axis stroke (mm)
    1000
    1100
    1100
    1200
    1300
    1500
    Y-axis travel (mm)
    500
    600
    650
    650
    700
    800
    Z-axis travel (mm)
    550
    600
    650
    650
    750
    700
    T-slot
    5-18-100
    5-18x100
    5-18-100
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    )575
    650
    710
    710
    713
    855
    spindle end face to work table (mm)
    100-650
    120-720
    120-720
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    18/18/18
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    5500
    6500
    6800
    7000
    8000
    12000
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Product Advantages

    The advantages of Machining center

    VMC Machine Center Features:
    High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
    Machine Center Application:
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Machine detection
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Application Example
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    Packaging&Shipping
    Heavy Cutting 3 Axis Cnc & Vmc Machine Center VMC1165 ODM
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can
    package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
