    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts

    Ask Lasest Price
    Brand Name : HR

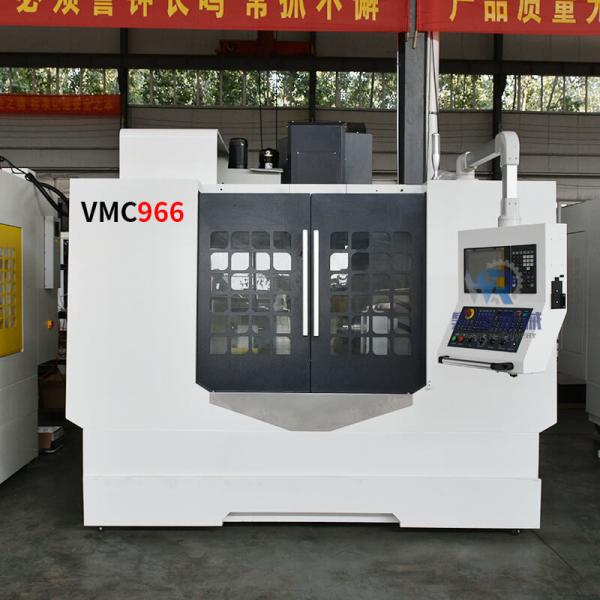

    Model Number : vmc 966
    Certification : CE ISO
    Price : 26700$-32000$ per one set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
    Supply Ability : 200 per a month
    Delivery Time : After 15-30 Days
    • Product Details
    • Company Profile

    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts

    Product Paramenters
    Model
    VMC650
    VMC840
    VMC850
    VMC855
    VMC966 I
    Table size (mm)
    1000x400
    1000x400
    1000x500
    1000x550
    1100x550
    Max. allowable load (Kg)
    400
    300
    500
    500
    600
    X-axis stroke (mm)
    650
    800
    800
    800
    900
    Y-axis travel (mm)
    400
    400
    500
    550
    600
    Z-axis travel (mm)
    550
    550
    500
    550
    600
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    5-18-100
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    663
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    100-700
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    5600
    Model
    VMC1050
    VMC1160
    VMC1165
    VMC1265 I
    VMC1370 I
    VMC1580
    Table size (mm)
    1200x420
    1200x600
    1200x600
    1200x600
    1400x700
    1700X800
    Max. allowable load (Kg)
    500
    800
    800
    800
    800
    1500
    X-axis stroke (mm)
    1000
    1100
    1100
    1200
    1300
    1500
    Y-axis travel (mm)
    500
    600
    650
    650
    700
    800
    Z-axis travel (mm)
    550
    600
    650
    650
    750
    700
    T-slot
    5-18-100
    5-18x100
    5-18-100
    5-18-100
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    )575
    650
    710
    710
    713
    855
    spindle end face to work table (mm)
    100-650
    120-720
    120-720
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    18/18/18
    36/36/24
    36/36/36
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    5500
    6500
    6800
    7000
    8000
    12000
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts

    Product Description
    Machining center 966 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing
    • Machine samples:

    Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds,connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.
    Product Advantages

    The advantages of Machining center 855

    1. Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.
    2. Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well.
    3. Chip/Screw Conveyor— To evacuate the chips from the work zone, a variety of chip conveyors and chip augers may be employed to increase productivity and reduce downtime from manually shoveling out waste chips.
    4. Full Covers/Enclosures— These can be added to reduce the splash/splatter caused by milling operations and protect the operators and environment from the machining process.
    5. Rotating Tables — Adding additional Axes to the machine can greatly increase its productivity by turning a simple three-axis machine into a four- or even five-axis system capable of machining complex components with varying surfaces (such as turbine blades).
    6. Quick Loading Loaders — Another great addition to significantly increase productivity is the use of shuttle tables or other automatic part loading systems. These can decrease downtime and greatly increase the spindle “ON” time of most VMC systems.
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts
    Optional accessories
    High Speed 4 Axis CNC Vertical Machining Center For Aerospace Parts

    The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
    You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
