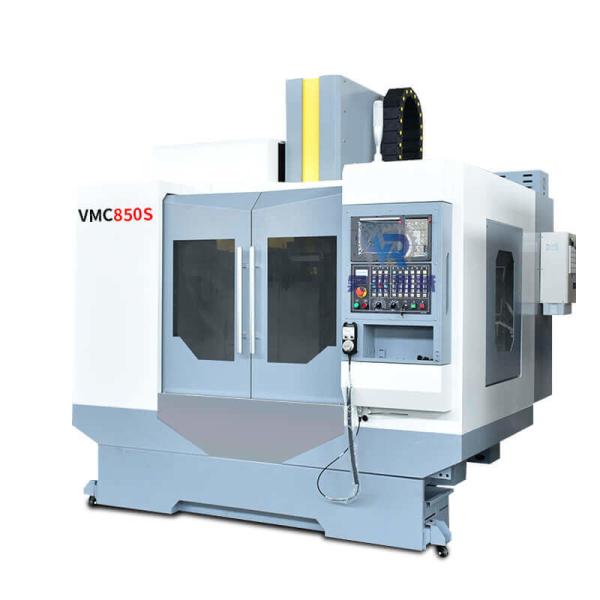

    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    Ask Lasest Price
    Brand Name : HR
    Model Number : vmc850s
    Certification : ceiso
    Price : 19000-40000usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    VMC850s cnc milling machine 3axis cnc machine vertical for metal

    Product Description
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    Model
    VMC650
    VMC840
    VMC850s
    VMC855
    Table size (mm)
    1000*400
    1000*400
    1000*500
    1000*550
    Max. allowable load (Kg)
    400
    300
    500
    500
    X-axis stroke (mm)
    650
    800
    800
    800
    Y-axis travel (mm)
    400
    400
    500
    550
    Z-axis travel (mm)
    550
    550
    500
    550
    T-slot
    3-18-120
    3-18-140
    5-18-108
    5-18-90
    spindle center to Z-axis guide surface (mm)
    485
    445
    552
    590
    spindle end face to work table (mm)
    100-650
    100-650
    110-610
    120-670
    Spindle taper hole
    BT40-120
    BT40-120
    BT40-140
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    30/30/18
    48/48/48
    48/48/48
    Machine Weight (Kg)
    3800
    3200
    5300
    5500
    Model
    VMC966 I
    VMC1050
    VMC1160
    VMC1165
    Table size (mm)
    1100*550
    1200*420
    1200*600
    1200*600
    Max. allowable load (Kg)
    600
    500
    800
    800
    X-axis stroke (mm)
    900
    1000
    1100
    1100
    Y-axis travel (mm)
    600
    500
    600
    650
    Z-axis travel (mm)
    600
    550
    600
    650
    T-slot
    5-18-100
    5-18-100
    5-18*100
    5-18-100
    spindle center to Z-axis guide surface (mm)
    663
    575
    650
    710
    spindle end face to work table (mm)
    100-700
    100-650
    120-720
    120-720
    Spindle taper hole
    BT40-150
    BT40-150
    BT40-150
    BT40-150
    Spindle speed (r/min)
    8000
    8000
    8000
    8000
    X/Y/Z rapid movement (m/min)
    48/48/48
    18/18/18
    36/36/24
    36/36/36
    Machine Weight (Kg)
    5600
    5500
    6500
    6800
    Model
    VMC1270
    VMC1370
    VMC1580
    Table size (mm)
    1200*700
    1400*700
    1700*800
    Max. allowable load (Kg)
    800
    800
    1500
    X-axis stroke (mm)
    1200
    1300
    1500
    Y-axis travel (mm)
    700
    700
    800
    Z-axis travel (mm)
    700
    750
    700
    T-slot
    5-18-130
    5-18-130
    5-22-135
    spindle center to Z-axis guide surface (mm)
    710
    713
    855
    spindle end face to work table (mm)
    120-770
    120-870
    160-860
    Spindle taper hole
    BT40-150
    BT40-150
    BT50-155
    Spindle speed (r/min)
    8000
    8000
    6000
    X/Y/Z rapid movement (m/min)
    36/36/36
    24/24/24
    24/24/18
    Machine Weight (Kg)
    7000
    8000
    12000
    1 . HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; CNC Vertical Machine Center The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting; CNC Vertical Machine Center The basic parts are molded with resin sand and aging treatment, which provides a guarantee for the stability of the long-term service performance of the machine tool.
    2 . The X, y and Z guide rails have the characteristics of high speed, high rigidity, low friction, low noise and low temperature rise change. They cooperate with automatic forced lubrication to improve the accuracy and service life of the machine tool;
    3 . Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock; The z-direction drive motor is equipped with power loss braking device;
    4 . CNC Vertical Machine Center X, y and Z feed directions adopt high-precision and high-strength internal circulation double nut preloading large lead ball screw, with high feed speed; The drive motor is directly connected with the lead screw through the elastic coupling, and the feed servo motor directly transmits the power to the high-precision ball screw without back clearance to ensure the positioning accuracy and synchronization of the machine tool;
    5 . High speed, high precision and high rigidity spindle unit is adopted, with strong axial and radial bearing capacity. 6 . The spindle adopts the central air blowing structure. When the spindle looses the tool, the central high-pressure gas is quickly used to clean the inner cone of the spindle to ensure the accuracy and service life of tool clamping;
    Product Details
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    Taiwan HIWIN high precison guideway Taiwan-made spindle Unit,8000-12000rpm available.Reliable Control System: vmc850s cnc milling machine machining center is suitable for producing metal product and parts in all shapes. Taiwan spindle adopts high-quality bearings with good rigidity. BT40 tool handle is standard and BT40 tool handle is optional.HT300 cast iron is adopted for the main foundation parts such as base, sliding seat, workbench, column and headstock; vmc850s cnc milling machine The substructure is a box structure, and the compact and reasonable symmetrical reinforcement structure ensures the high rigidity, vmc850s cnc milling machine bending resistance and damping performance of the foundation parts; A-span column and internal grid reinforcement effectively ensure the rigidity and accuracy of z-axis strong cutting;
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    Taiwan spindle ensures high-speed cutting. The water outlet function of the spindle center has good chip removal effect and good cooling effect, which improves the processing quality
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    Taiwan HIWIN high precison guideway
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis

    Automatic tool change system
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    Casting customers are assured of machinery and precision testing
    sample
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
    Packaging&Shipping
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    Packaging Details: 1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
    Certifications
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    customer visiting
    VMC850s Small Vertical Machining Center Cnc Milling Machine 3axis
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
