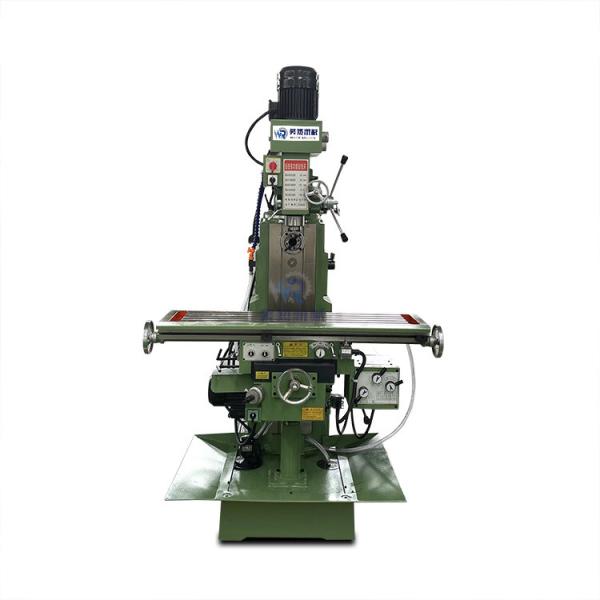

    3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

    Ask Lasest Price
    Brand Name : HR
    Model Number : zx6350
    Certification : ceiso
    Price : usd3000-6000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

    3 Axis Heavy Duty Universal Milling Machine Vertical Turret Mill

    It is an ideal processing equipment for machinery manufacturing, mould, automobile, motorcycle and other industries. It is an economical drilling and milling machine. It can be used for drilling, milling, boring, grinding and other cutting functions. It has good versatility, simple structure and convenient operation and maintenance.
    ZX6350
    SPECIFICATIONS
    Units
    Maximum borehole diameter
    50
    mm
    Max. end milling dia.
    100
    mm
    Max. vertical milling dia.
    25
    mm
    Max.boring dia.
    120
    mm
    Max. tapping dia.
    M16
    mm
    Spindle taper
    M.T.4
    Vertical Spindle nose to table surface distance
    90-390
    mm
    Distance from horizontal shaft center to worktable
    0-300
    mm
    Distance from vertical shaft center to vertical guide rail surface of bed
    200-500
    mm
    Spindle speed range
    (8 step)115-1750(V)(12 step)40-1350(H)
    r/min
    Table size
    1200*280
    mm
    Table travel (longitudinal / transverse / vertical)
    X/650 Y/300 Z/430
    mm
    Distance from horizontal axis center to suspension beam plane
    175
    mm
    Longitudinal / transverse motorized feed speed of workbench
    22-555(8 step)810(fast)
    mm/min
    Vertical motorized lifting speed of workbench
    560
    mm/min
    Number / width / spacing of T-shaped slots on the workbench
    3/14/70
    mm
    Power of main drive motor
    1.5/2.2(V);2.2(H)
    kW
    Power of table motor feed motor
    750
    w
    Lifting table lifting feed motor power
    750
    w
    Cooling pump motor power
    40
    w
    Net weight / gross weight of machine tool
    1450/1560
    kg
    overall dimension
    1680*1480*2250
    mm
    Packaging&Shipping
    Packaging Details:
    1. Outside package: Standard marine export plywood case.
    2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
    Certifications
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    customer visiting
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
    Company information
    Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in mechanical product R & Development of numerical control equipment. It integrates development, production and sales. The company has a series of CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . which are widely used in machinery, mold, advertising, metal processing,in China and exported to Asia, Europe, North America, South America, Africa and other countries. It has advanced manufacturing technology, large production scale and high product quality. Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
    FAQ
    1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company? A: We specialized in all kinds of machines ,CNC Milling Machine ,Machining Center ,Grinding Machines,Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: What about the quality of the machine?and after-sales service? A : Our machine warranty period is 2years,and we provide free technical service. 4. What is your trade terms? A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight . 6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )
