    VMC850 Vertical Machining Center 5.5 / 7.5kw CNC Milling Machines

    Ask Lasest Price
    Brand Name : HR
    Model Number : VMC850
    Certification : CE
    Price : $20700 1set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40sets months
    Delivery Time : 30 days
    • Product Details
    • Company Profile

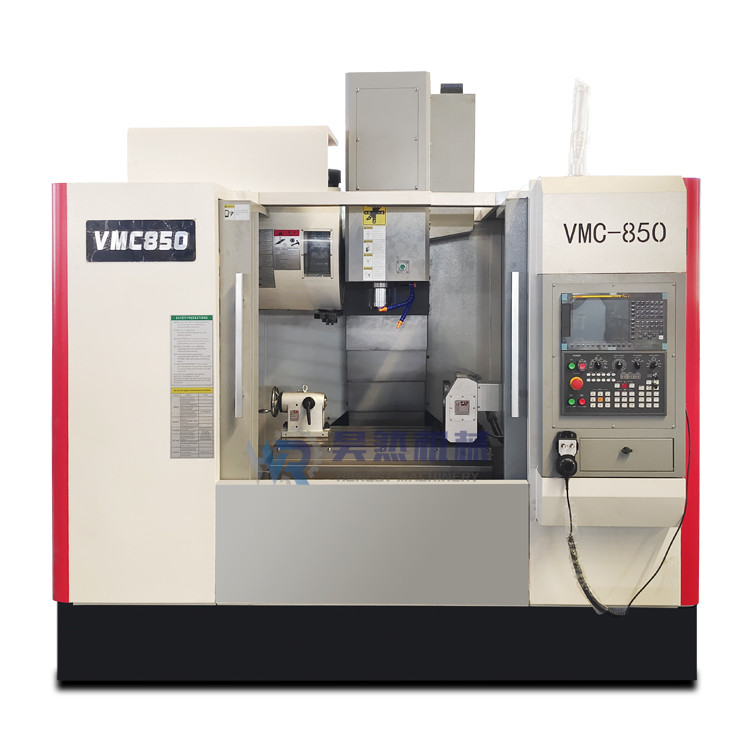

    VMC850 Vertical Machining Center 5.5 / 7.5kw CNC Milling Machines


    Product Description
    This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Machining centers are usually classified according to the relative position of the spindle and the worktable, and are divided into horizontal, vertical and universal machining centers.
    VMC850 Vertical Machining Center 5.5 / 7.5kw CNC Milling Machines
    Work table
    Area of work table
    100×500mm
    Load capacity
    600 kg


    spindle
    Motor power
    7.5kw
    Distance between the spindle end and the work surface
    120-670 mm
    Spindle center to column guide rail
    460 mm
    Speed
    8000 rpm
    Taper of spindle
    BT40


    Distance of travel
    X-Axis
    700 mm
    Y-Axis
    450mm
    Z-Axis
    500 mm


    Feed
    X/Y/Z-axis fast moving
    24/24/18mm(linear guide way)
    fast cutting speed mm /min
    1-10000 mm/min


    precision
    Positional accuracy
    ±0.01 mm
    Repeat positional accuracy
    ±0.005 mm


    Tools
    Tool changer type
    16 tools head type tool changer
    Max. tool length
    300mm
    Max. Tool diameter
    Φ80(adjacent tool)/φ150(not adjacent tool)
    Max.tool weight
    8kg
    Tool changing time(tool-to-tool)
    7sec


    Data
    Air pressure
    0.6 Mpa
    Power Supply
    Voltage(V)/frequency (Hz)
    380/50
    Total capacity(KVA)
    10
    Weight
    5000 kg
    Widely applicable, the production gospel of various industries
    -------Automotive parts, bicycle parts
    -------Electrical and electric tool parts
    -------Optical accessories, railway accessories, petroleum machinery, printing machines
    Detailed Images
    Certificate
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    Company Introduction
    Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
    brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
    meeting the personalized needs of users.
    Our Services
    1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
    2. Received your phone or mail,we will Analyze the problem immediately.
    3.Supply professional solution, after analyze the problem, we give you our best solution.
    4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
    5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
    6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
    Packing&Shipping
    1.Port: Qingdao port or Shanghai port
    2.Payment method: T/T, L/C, D/P, D/D etc.
    3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
    4.Delivery time: 30 days after receive the 30%T/T deposit.
    5.Non-fumigation packaging, we use seaworthy plywood.
    6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
    7.Water-proof and damp proof, water resistant film wraped all the machine.
    8.Fully sheathed case,prevention of collision and keep the goods intact.
    FAQ
    Q1: How to buy the right product for you ?
    A1: You can pass on your requirements to me, and we will reply to you in time.

    Q2: About our after-sales service ?
    A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.

    Q3: How can I choose the most suitable machines ?
    A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

    Q4: What are the terms of payment ?
    A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

    Q5: How long is the machine warranty?
    A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
