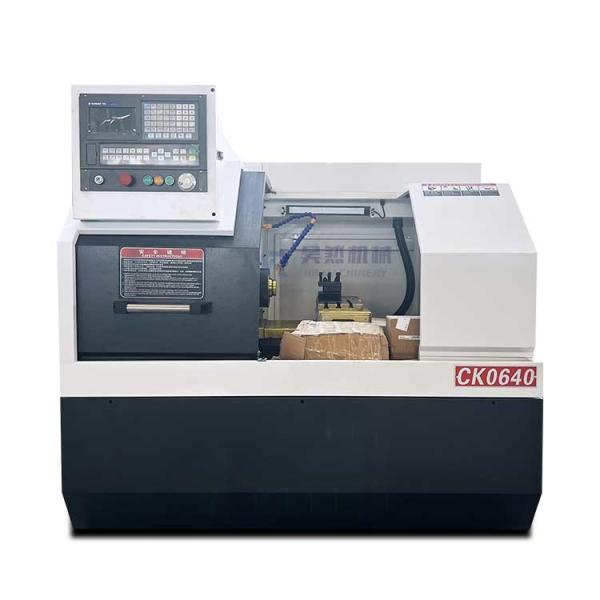

Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm

Shandong HR Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm from wholesalers

    Buy cheap Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm from wholesalers
    • Buy cheap Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm from wholesalers
    • Buy cheap Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm from wholesalers

    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm

    Ask Lasest Price
    Brand Name : HR
    Model Number : ck0640
    Certification : ceiso
    Price : usd4500-5000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 40set/month
    Delivery Time : 30day
    • Product Details
    • Company Profile

    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm

    China small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine

    Product Introduction
    cnc lathe machine working process ludhiana is a high-precision, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.

    Specification
    ck0640
    ck6130
    ck6132
    ck6432
    ck6136
    CK6140
    Max. swing dia. over bed
    Φ300mm
    Φ300mm
    Φ360mm
    Φ360mm
    Φ360mm
    Φ400mm
    Max. swing dia. over cross slide
    φ130mm
    100mm
    150mm
    Φ150mm
    Φ190mm
    Φ225mm
    Max. processing length
    240mm
    400mm
    450mm
    450/700mm
    750/1000mm
    750/1000mm
    Spindle bore
    Φ42mm
    48mm
    40mm
    Φ60mm
    Φ60mm
    Φ60mm
    Spindle speed
    50~2500rpm
    150-2500mm
    150-2500mm
    150-2500mm
    150-2500rpm
    150-2500rpm
    X/Z axis fast feeding speed
    6/8 M/MIN
    8/10 M/MIN
    6/8 M/MIN
    8/10 M/MIN
    6/8 m/min
    6/8 M/MIN
    X/Z axis position accuracy
    0.01/0.015mm
    X/Z-axis repeatability
    0.012/0.013mm
    clamping
    Pneumatic collet
    3 Jaw Manual Chuck
    tool post type
    gang-type tool holder
    4 station electric tool holder
    Main motor power
    3KW
    4kw
    4kw
    4kw
    4/5.5KW
    5.5KW
    Tailstock taper
    MT4
    MT3
    MT4
    MT4
    MT4
    Tailstock sleeve dia.
    /
    60mm
    60mm
    60mm
    60mm
    ?
    Tailstock sleeve travel
    /
    100mm
    100mm
    100
    120mm
    Overall dimensions(L×W×H)
    1550×920×1450
    1750*1200*1570
    1820×1100×1550
    1660/1940×1400×1700
    1850/2120/2370/x1400x1700mm
    2120/2370×1400×1700mm
    Net weight
    850 kg
    1220kg
    1200kg
    1250/1450kg
    1500/1650/1750
    1800/1950

    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm

    Details Images
    1.The base of the turning machine cnc lathe frame hobby mini lathe is wide, the structure of the bed rail is reasonable, and the cooling structure design of the bedside box can effectively improve the stability of the machine tool and the stability of the spindle. 2.The guide rail is made of wear-resistant cast iron, quenched and refined by super audio to ensure the long-term stability and service life of the machine tool
    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm
    Packing&Shipping
    1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm
    Certifications
    All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm
    Customer Photos
    We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm
    Company Introduction
    Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
    brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
    meeting the personalized needs of users.
    Small CK0640 Metal CNC Lathe Flat Bed CNC Lathe Machine 50 - 2500rpm
    FAQ
    Q1: How to buy the right product for you ?
    A1: You can pass on your requirements to me, and we will reply to you in time.

    Q2: About our after-sales service ?
    A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will
    timely deal with the free new parts for you to replace the next order.

    Q3: How can I choose the most suitable machines ?
    A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

    Q4: What are the terms of payment ?
    A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc

    Q5: How long is the machine warranty?
    A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
